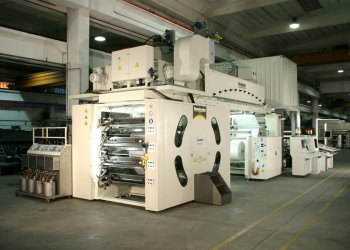

SCHIAVI SIRIO flexographic printing machine 8 colors

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL794
Manufacturer SCHIAVI
Model SIRIO
Year 1999
Number of colors 8
Print possibilities 8+0
Gearless No
Fast sleeve change No
4 motor per deck CNC position system No
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1270
Min print repeat (mm) 350
Max print repeat (mm) 750
Unwinder type Turret Automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000
Drying 2 zones - 4 fans - final tunnel-2 gas burners
Videocamera yes BST
Corona treatment yes MERO
Web guides Yes in and out
Inking system Closed chamber doctor blades - 8 electrioc ink pumps
Anilox 8 ceramic
Print Sleeves Yes
Additional information Motorized print station positioning- motorized remote controlled micrometric screws Motorized remote controlled longutudinal and side registers Chiller thermoregulator Tension range: 3-40 Kg Materials: PET from 12my, OPP from 15my, laminates up to 150 gr/m2, Alufoi+ paper electric hoists Min Machine speed from o to 300 Printing material LDPE, BOPP and other rigid films
