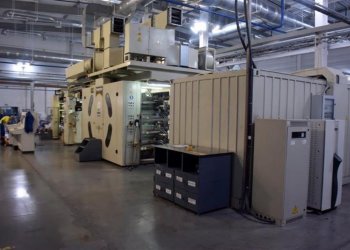

8 colors BOBST 20SIX flexographic printing machine ** SOLD ** Ask more informations about a similar one

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Machine Code FL782
Manufacturer BOBST
Model 20SIX
Year 2013
Number of colors 8
Gearless Yes
Fast sleeve change Yes
Web width (mm) 1300
Print width (mm) 1250
Max reel diameter unwinder (mm) 1020
Rewinder type Shaftless turret automatic
Drying 2 zones with 4 dfanbs , pre heating chamber and fin al tunnel 4,5 mt length , automatic air recirculation system with LEL control
Videocamera Yes inclòude d
Corona treatment Yes , AFS , servo driven
Web guides Yes in an d out with ultrasonic sensors
Inking system Close d chamber doctor blades with quick blade change system
Anilox 1000LPx 3 pcs; 900LPIx4 pcs; 800LPI x 3 pcs ; 700LPI x 4 pcs; 600LPI x 2 pcs ;500LPIx 2 pcs; 300LPI x 3 pcs;
Print Sleeves 340RP 11pcs ; 350RP 10pcs; 360RP 10pcs; 370RP 10pcs; 380RP 10pcs; 390RP 10pcs;400RP 16pcs;410RP 11pcs; 420RP 15pcs;430RP 10pcs; 440RP 20pcs; 450RP 25pcs; 460RP 25pcs
Print cylinders 8 carbon fiber carriers for repeat > 460 mm and 8 carbon fiber carriers for repeats > 540 mm
Additional information max. speed: 400meter/min. auto. print plate fixing system

** SOLD **
