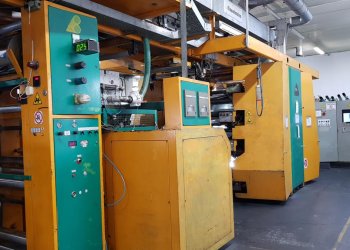

6 colors FLEXOTECNICA flexo printing machine

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Machine Code FL772
Manufacturer FLEXOTECNICA
Year 1998
Number of colors 6
Print possibilities 6+0.
Gearless No
Web width (mm) 900
Print width (mm) 850
Max reel diameter unwinder (mm) 800
Rewinder type Double spindle turret flying splice
Drying Gas burner.Drying system:Hot air
Videocamera Yes
Inking system solvent based..6 ink pumps.Enclosed doctor blade chambers with ceramic anilox rollers
Anilox anilox rollers ceramic coated and laser engraved, as following:1 roller engraved with screen 75 lines/inch, volumes 46;1 rollers engraved with screen 80 lines/inch, volumes 60;1 rollers engraved with screen 100 lines/inch, volumes 32;2 rollers engraved with screen 110 lines/inch, volumes 30;2 rollers engraved with screen 110 lines/inch, volumes 50;1 rollers engraved with screen 360 lines/inch, volumes 18;1 rollers engraved with screen 650 lines/inch, volumes 18;1 rollers engraved with screen 800 lines/inch, volumes 4,25.
Print Sleeves Plate roller sleeves as following:6 sleeves repeat length 340 mm.;6 sleeves repeat length 360 mm.;6 sleeves repeat length 380 mm.;10 sleeves repeat length 410 mm.;6 sleeves repeat length 420 mm.;13 sleeves repeat length 440 mm.;5 sleeves repeat length 450 mm.;6 sleeves repeat length 460 mm.11 sleeves repeat length 500 mm.;3 sleeves repeat length 510 mm.;1 sleeves repeat length 530 mm.;6 sleeves repeat length 540 mm.;6 sleeves repeat length 550 mm.;6 sleeves repeat length 560 mm.;6 sleeves repeat length 640 mm.;
Additional information Maximum speed:250 m./min. Length registers:Motorized remote controlled. Side registers: manual. Decks’ positioning system:motorized. Locking system of the printing units:manual. Edge guide :1 before printing and 1 before rewinding Transmission type: bull-gear, pitch 5 mm. Substrates able to process :plastic films
