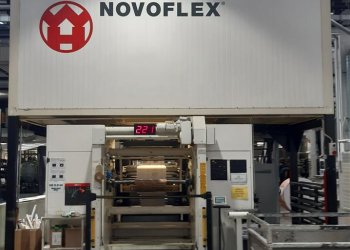

FISCHER & KRECKE 16 S Flexo printer 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL722
Manufacturer
FISCHER & KRECKE
Model
16 S
Year
2001
Number of colors
8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
900
Print width (mm)
800
Max print repeat (mm)
760
Unwinder type
Turret with automatic splice
Max reel diameter unwinder (mm)
1000
Rewinder type
Turret with automatic splice
Max reel diameter rewinder (mm)
1000
Drying
Gas
Videocamera
Yes, AVT video inspection
Corona treatment
Yes
Web guides
Yes
Vyscosity control
Yes, Bloss
Washing system
Yes
Inking system
8 chamber doctor blades and 10 spare chambers
Anilox
380l/cm ; 2x380L/cm 4,7Vol ; 3x380L/cm 4,6Vol ;380L/cm 4,7Vol;380L/cm 4,5 Vol; 340L/cm 4,8Vol;2x270L/cm 8Vol; 270L/cm 7,5 Vol ; 240L/cm 9,6Vol ;240L/cm9,5 Vol;225L/cm9,7 Vol;225L/cm9,1 Vol ;200L/cm6,3 Vol; 2x200L/cm11,3 Vol;200L/cm11 Vol ;200L/cm 8,7 Vol ; 140L/cm14,3 Vol;140L/cm14 Vol;140L/cm 11,9 Vol
Print Sleeves
700 print sleeves : 16x320;16x330;10x340;16x350;24x360;11x370;1x375;16x380;30x390;28x400;39x410;39x420;20x425;22x430;37x440;15x450;1x470;31x480;24x490;18x500;68x510;24x520;16x530;32x540;18x550;30x560;32x570;39x580;12x590;24x600;16x620;16x640;1x650;16x660;16x700;1x710;22x760mm
Additional information
Mechanical speed m/min 360 Temperature control unit for CI and water cooling A&V plate mounter Chiller/thermoregulation
Machine Code FL722
Manufacturer FISCHER & KRECKE
Model 16 S
Year 2001
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 900
Print width (mm) 800
Max print repeat (mm) 760
Unwinder type Turret with automatic splice
Max reel diameter unwinder (mm) 1000
Rewinder type Turret with automatic splice
Max reel diameter rewinder (mm) 1000
Drying Gas
Videocamera Yes, AVT video inspection
Corona treatment Yes
Web guides Yes
Vyscosity control Yes, Bloss
Washing system Yes
Inking system 8 chamber doctor blades and 10 spare chambers
Anilox 380l/cm ; 2x380L/cm 4,7Vol ; 3x380L/cm 4,6Vol ;380L/cm 4,7Vol;380L/cm 4,5 Vol; 340L/cm 4,8Vol;2x270L/cm 8Vol; 270L/cm 7,5 Vol ; 240L/cm 9,6Vol ;240L/cm9,5 Vol;225L/cm9,7 Vol;225L/cm9,1 Vol ;200L/cm6,3 Vol; 2x200L/cm11,3 Vol;200L/cm11 Vol ;200L/cm 8,7 Vol ; 140L/cm14,3 Vol;140L/cm14 Vol;140L/cm 11,9 Vol
Print Sleeves 700 print sleeves : 16x320;16x330;10x340;16x350;24x360;11x370;1x375;16x380;30x390;28x400;39x410;39x420;20x425;22x430;37x440;15x450;1x470;31x480;24x490;18x500;68x510;24x520;16x530;32x540;18x550;30x560;32x570;39x580;12x590;24x600;16x620;16x640;1x650;16x660;16x700;1x710;22x760mm
Additional information Mechanical speed m/min 360 Temperature control unit for CI and water cooling A&V plate mounter Chiller/thermoregulation
** SOLD **
