FISCHER & KRECKE 16 S Flexo printer 8 colors ** SOLD ** Ask more informations about a similar one

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Machine Code FL722
Manufacturer FISCHER & KRECKE
Model 16 S
Year 2001
Number of colors 8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 900
Print width (mm) 800
Max print repeat (mm) 760
Unwinder type Turret with automatic splice
Max reel diameter unwinder (mm) 1000
Rewinder type Turret with automatic splice
Max reel diameter rewinder (mm) 1000
Drying Gas
Videocamera Yes, AVT video inspection
Corona treatment Yes
Web guides Yes
Vyscosity control Yes, Bloss
Washing system Yes
Inking system 8 chamber doctor blades and 10 spare chambers
Anilox 380l/cm ; 2x380L/cm 4,7Vol ; 3x380L/cm 4,6Vol ;380L/cm 4,7Vol;380L/cm 4,5 Vol; 340L/cm 4,8Vol;2x270L/cm 8Vol; 270L/cm 7,5 Vol ; 240L/cm 9,6Vol ;240L/cm9,5 Vol;225L/cm9,7 Vol;225L/cm9,1 Vol ;200L/cm6,3 Vol; 2x200L/cm11,3 Vol;200L/cm11 Vol ;200L/cm 8,7 Vol ; 140L/cm14,3 Vol;140L/cm14 Vol;140L/cm 11,9 Vol

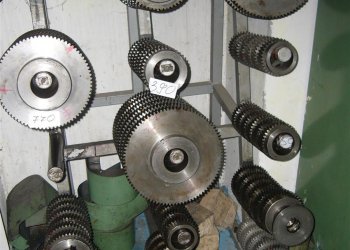

Print Sleeves 700 print sleeves : 16x320;16x330;10x340;16x350;24x360;11x370;1x375;16x380;30x390;28x400;39x410;39x420;20x425;22x430;37x440;15x450;1x470;31x480;24x490;18x500;68x510;24x520;16x530;32x540;18x550;30x560;32x570;39x580;12x590;24x600;16x620;16x640;1x650;16x660;16x700;1x710;22x760mm
Additional information Mechanical speed m/min 360 Temperature control unit for CI and water cooling A&V plate mounter Chiller/thermoregulation

** SOLD **
