WINDMOLLER & HOLSCHER ASTRAFLEX flexographic printing machine 8 colors ** SOLD ** Ask more informations about a similar one
Flexo CI presses use a central drum which is common to all colours as counter impression roll.
Machine Code | FL760 |
Manufacturer | WINDMOLLER & HOLSCHER |
Model | ASTRAFLEX |
Year | 1999 |
Number of colors | 8 |
Gearless | No |
Fast sleeve change | No |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1620 |
Print width (mm) | 1570 |
Min print repeat (mm) | 400 |
Max print repeat (mm) | 1200 |
Unwinder type | turret |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | turret |
Max reel diameter rewinder (mm) | 1000 |
Drying | gas |
Videocamera | yes |
Web guides | yes |
Anilox | 15 Anilox, 4 x 225, 3 x 300, 1 x 350, 3 x 450, 4 x 650 |
Print Sleeves | 150 sleeves, |
Additional information | Reverse print is eltromat 2 pass system (print 1 side turn round and eye to register and reprint reverse) .5 sets steel cylinders. Portalift for automatic mandrel and sleeve loading 8 mandrels |
** SOLD **
You may also be interested in:

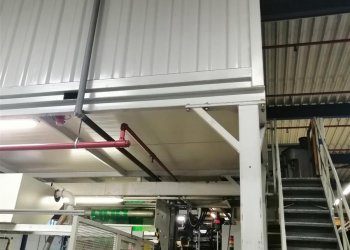

FISCHER & KRECKE 34DF/8 CNC
