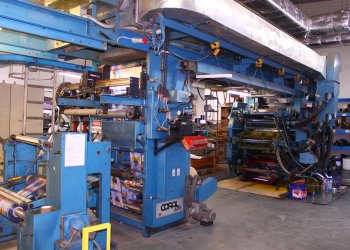

UTECO CORAL 675 flexo press 6 colors

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
about a similar one
Machine Code
FL759
Manufacturer
UTECO
Model
CORAL 675
Year
1995
Number of colors
6
Print possibilityes
6+0
Gearless
No
Fast sleeve change
No
4 motor per deck CNC position system
Not specifed
Computer supervision
Yes
Web width (mm)
820
Print width (mm)
800
Min print repeat (mm)
300
Max print repeat (mm)
750
Unwinder type
Two position unwidner , drop splice
Max reel diameter unwinder (mm)
800
Rewinder type
Two position independent rewinder
Max reel diameter rewinder (mm)
800
Drying
2 zones , 4 fans, 3 mt tunnel electric heaters
Videocamera
yes BST Super Handy Scan
Web guides
yes
Inking system
Closed chamber doctor blades
Anilox
12 ceramic as follows : 3 x280 l/ cm vol.5,6 ; 2 x280 l/cm vol 8,0 HVP; 2 x240 l/cm vol 6,0; 2 x120 l/cm vol8,0; 1 x120 l/cm vol12,5; 1 x 160 l/cm vol.12,5; 1 x 100 l/cm
Print Sleeves
115 print sleeves ; 1 set of mandrels, 3 sets of adaptors sleeves as follows : 6 x 299 mm; 6 x 319 ; 6 x334 ; 6 x 364 ; 6 x 384 ; 6 x 404 ; 6 x 429 ; 6 x 449 ; 6 x 469 ; 6 x 489 ; 6 x 509 ; 6 x 529 ; 6 x 553,6 ; 6 x 573,5 ; 6 x 603,5 ; 6 x 638,4 ; 6 x 683,3
Additional information
Motorized print deck prepositioning Motorized longitudinal registers Sleeve change on trolley out of machine Gear pitch DP 16
Machine Code FL759
Manufacturer UTECO
Model CORAL 675
Year 1995
Number of colors 6
Print possibilityes 6+0
Gearless No
Fast sleeve change No
4 motor per deck CNC position system Not specifed
Computer supervision Yes
Web width (mm) 820
Print width (mm) 800
Min print repeat (mm) 300
Max print repeat (mm) 750
Unwinder type Two position unwidner , drop splice
Max reel diameter unwinder (mm) 800
Rewinder type Two position independent rewinder
Max reel diameter rewinder (mm) 800
Drying 2 zones , 4 fans, 3 mt tunnel electric heaters
Videocamera yes BST Super Handy Scan
Web guides yes
Inking system Closed chamber doctor blades
Anilox 12 ceramic as follows : 3 x280 l/ cm vol.5,6 ; 2 x280 l/cm vol 8,0 HVP; 2 x240 l/cm vol 6,0; 2 x120 l/cm vol8,0; 1 x120 l/cm vol12,5; 1 x 160 l/cm vol.12,5; 1 x 100 l/cm
Print Sleeves 115 print sleeves ; 1 set of mandrels, 3 sets of adaptors sleeves as follows : 6 x 299 mm; 6 x 319 ; 6 x334 ; 6 x 364 ; 6 x 384 ; 6 x 404 ; 6 x 429 ; 6 x 449 ; 6 x 469 ; 6 x 489 ; 6 x 509 ; 6 x 529 ; 6 x 553,6 ; 6 x 573,5 ; 6 x 603,5 ; 6 x 638,4 ; 6 x 683,3
Additional information Motorized print deck prepositioning Motorized longitudinal registers Sleeve change on trolley out of machine Gear pitch DP 16
