** SOLD **

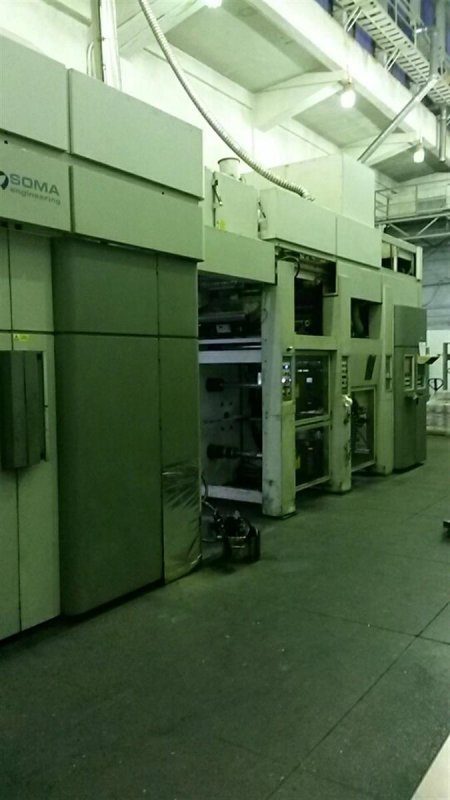

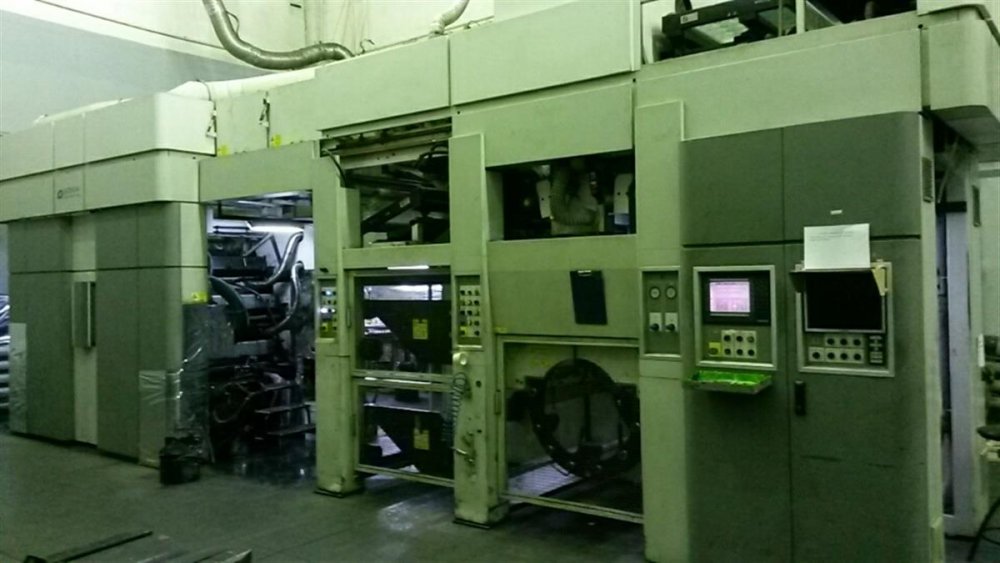

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.
Ask more informations
about a similar one
- Machine Code
- FL653
- Manufacturer
- SOMAFLEX
- Modello
- MINI -E
- Year
- 2003
- Number of colors
- 8
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 850
- Print width (mm)
- 820
- Min print repeat (mm)
- 250
- Max print repeat (mm)
- 600
- Unwinder type
- Two position non stop
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 zones electric driers
- Videocamera
- YES
- Corona treatment
- Yes
- Web guides
- Yes
- Inking system
- 10 doctor blade chamber system . 8 pneumatic pumps. 8 ink tanks.
- Anilox
- 16 as follows: 1 x 100 L/cm ; 1x120 ;2x140 ;1x180;1x200;3x255;6x315;1x320L/cm
- Print Sleeves
- Plate sleeves 88 as follows: 8x290mm;310;320;360;380;;420;440;500;540;560;600mm
- Note
- Max mechcanical speed 250m/min Plate mounting machine Soma- Microflex S
| Machine Code | FL653 |
| Manufacturer | SOMAFLEX |
| Modello | MINI -E |
| Year | 2003 |
| Number of colors | 8 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 850 |
| Print width (mm) | 820 |
| Min print repeat (mm) | 250 |
| Max print repeat (mm) | 600 |
| Unwinder type | Two position non stop |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zones electric driers |
| Videocamera | YES |
| Corona treatment | Yes |
| Web guides | Yes |
| Inking system | 10 doctor blade chamber system . 8 pneumatic pumps. 8 ink tanks. |
| Anilox | 16 as follows: 1 x 100 L/cm ; 1x120 ;2x140 ;1x180;1x200;3x255;6x315;1x320L/cm |
| Print Sleeves | Plate sleeves 88 as follows: 8x290mm;310;320;360;380;;420;440;500;540;560;600mm |
| Note | Max mechcanical speed 250m/min Plate mounting machine Soma- Microflex S |
