8 colors UTECO ONYX 810 (GEARLESS) flexographic printing machine ** SOLD ** Ask more informations about a similar one
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Machine Code | FL636 |
Manufacturer | UTECO |
Model | ONYX 810 (GEARLESS) |
Year | 2010 |
Number of colors | 8 |
Print possibilities | 8+0, REPRINT possibility |
Gearless | Yes |
Fast sleeve change | Yes |
Web width (mm) | 1500 |
Print width (mm) | 1400 |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | Automatic turret |
Drying | Electric heaters. Air recyling system with heat recovery system. Automatic system to detect the solvent concentration. Lenght 5m. Air flow 15.600 normal m3/h. Air speed 45 m/s . Installed powe 190 kw. |
Videocamera | BST PREMIUS Digital |
Corona treatment | Mero |
Web guides | BST |
Inking system | Water and solvent base. 8 ink pumps, tanks,8 doctor chamber blades |
Anilox | 16 anilox rollers sleeve type as follows: 1x 80-160 L 12,5-8 V ; 1x 120 L 11V ; 2x140L 10V; 1x180L 8V; 1x200L 10V;1x240L 9V;1x280L 8V; 1x280L 7V; 2x320L 6V ; 1x360L 3,8V; 4x360L 4,5V |
Print Sleeves | 152 sleeves for cliche |
Additional information | The printing group is on the left side, looking the machine from the operator side. Materials it is possible to print all the main type of plastic films and papers normally used in the flexible packaging Max reels weight 2000kg Register control BST Premius Digital 3 Antistatic bars. Curved (banana)roller 9 carrier for plate sleeves Blade slitter at rewinder with trim exhaust |
** SOLD **
You may also be interested in:

FISCHER & KRECKE 16S-8 (GEARLESS)
Category: Printing machines
Subcategory: Flexo CI
Print width (mm): 1270
Year: 2004

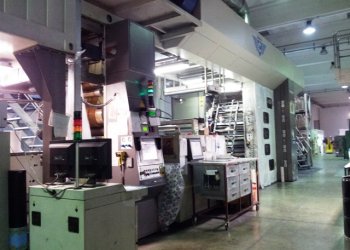

FLEXOTECNICA 10NG
Category: Printing machines
Subcategory: Flexo CI
Print width (mm): 1200
Year: 2009

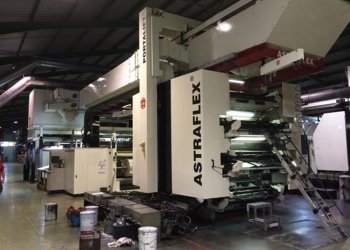

WINDMOLLER & HOLSCHER ASTRAFLEX
