- Maschinencode
- LA165
- Hersteller
- ROTOMEC
- Modello
- CL 1000 D HD 1750/450
- Baujahr
- 2009
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1750
- Materials
- PET, BOPP, OPA, PAPER, ALU, PE, PP CAST
- Speed
- 450m/min max mechanical speed. Max. operating speed according to working processes, materials, inks and solvent used 430m/min. Min. operating speed 30m/min. Automatic splices max.speed 400m/min.

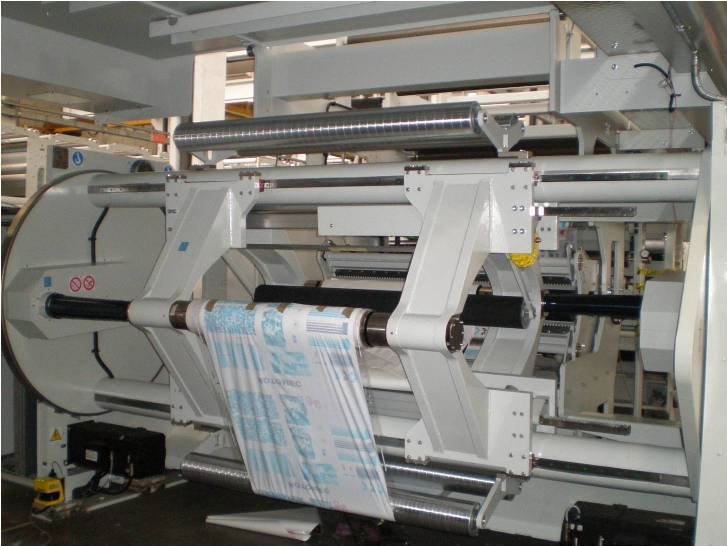

- First unwinder type
- TURRET AUTOMATIC
- Max diameter reel unwinder
- 1300
- Secondary unwinder type
- TURRET AUTOMATIC
- Max diameter reel unwinder
- 1300

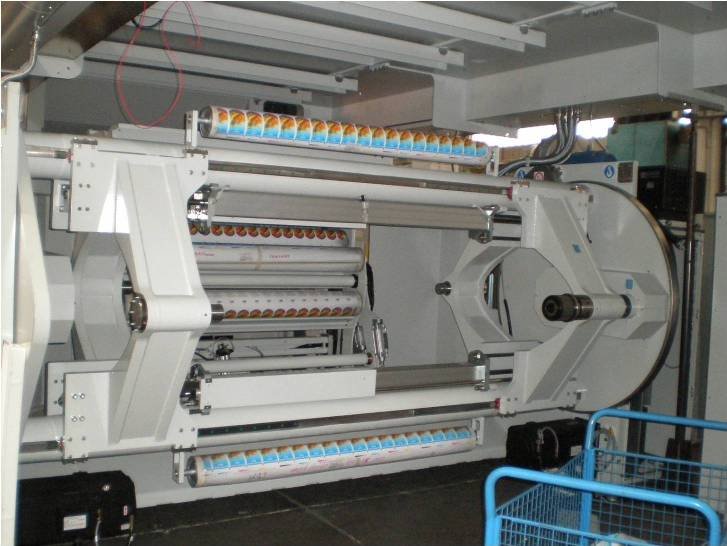

- Rewinder type
- TURRET AUTOMATIC
- Max diameter reel rewinder
- 1300

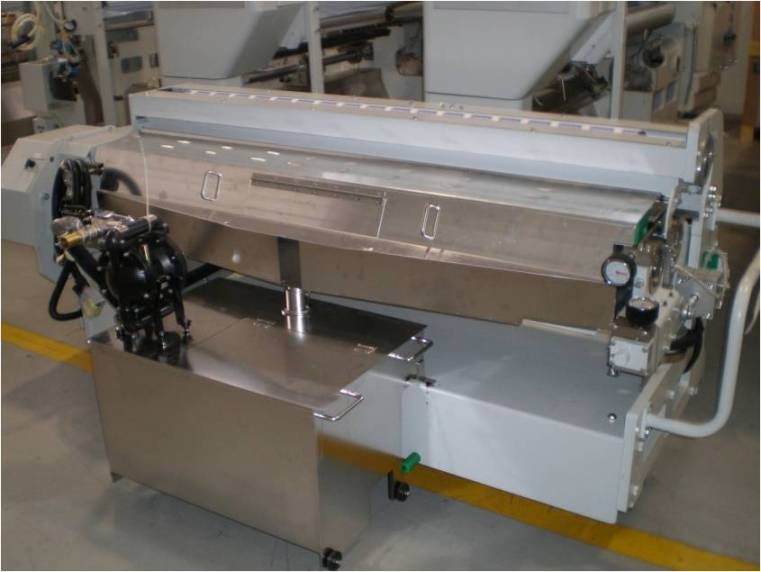

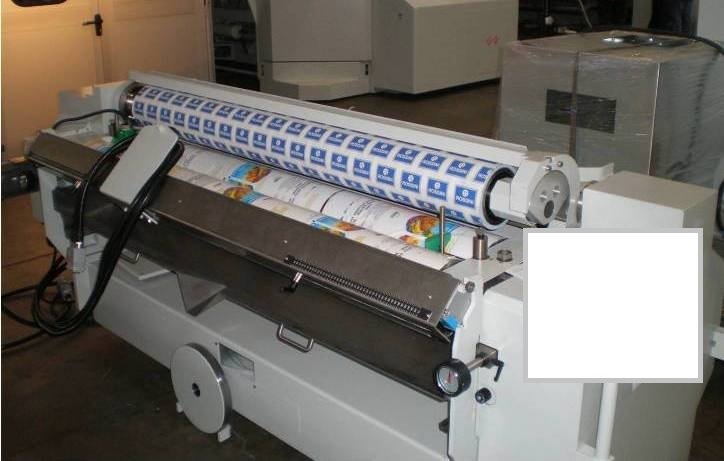

- Coating unit
- Rotogravure and solventless . Coating system with interchangeable trolley suitable for rotogravure and solventless
- Drying
- 4 drying zones, 4 sections 2.300mm each, 4 blowing fan. Tunnel flooting type. 4 thermal oil heaters
- Corona treatment
- on primary and secondary unwinder
- Note
- The machine is equipped with quick stop for web breaking and LEL alarm, . Protection against the oxidation for printing or coating with water based inks or lacquers on the coating unit. .Electric web breaking detector.Web guides Unwinders - 4 self-expanding chucks for 76mm & 152mm; Rewinder : 4-self-expanding chucks for 152mm. Calender. Web tension control after each unwinder. Web guide after each unwinder and before rewinding.
| Maschinencode | LA165 |
| Hersteller | ROTOMEC |
| Modello | CL 1000 D HD 1750/450 |
| Baujahr | 2009 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1750 |
| Materials | PET, BOPP, OPA, PAPER, ALU, PE, PP CAST |
| Speed | 450m/min max mechanical speed. Max. operating speed according to working processes, materials, inks and solvent used 430m/min. Min. operating speed 30m/min. Automatic splices max.speed 400m/min. |
| First unwinder type | TURRET AUTOMATIC |
| Max diameter reel unwinder | 1300 |
| Secondary unwinder type | TURRET AUTOMATIC |
| Max diameter reel unwinder | 1300 |
| Rewinder type | TURRET AUTOMATIC |
| Max diameter reel rewinder | 1300 |
| Coating unit | Rotogravure and solventless . Coating system with interchangeable trolley suitable for rotogravure and solventless |
| Drying | 4 drying zones, 4 sections 2.300mm each, 4 blowing fan. Tunnel flooting type. 4 thermal oil heaters |
| Corona treatment | on primary and secondary unwinder |
| Note | The machine is equipped with quick stop for web breaking and LEL alarm, . Protection against the oxidation for printing or coating with water based inks or lacquers on the coating unit. .Electric web breaking detector.Web guides Unwinders - 4 self-expanding chucks for 76mm & 152mm; Rewinder : 4-self-expanding chucks for 152mm. Calender. Web tension control after each unwinder. Web guide after each unwinder and before rewinding. |
