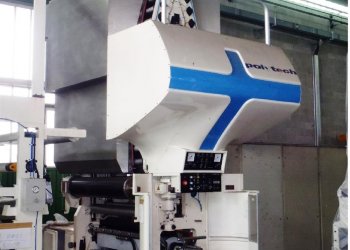

DCM LAMINASTAR2 Kaschierung und laminirung Maschine SOLVENTLESS // Laminators and coaters // Converting machines // Gebrauchte Maschinen // Tecno Converting 2000 S.r.l.

** SOLD **

Fotogalerie

Maschinencode: LA315
Hersteller: DCM
Modello: LAMINASTAR2
Baujahr: 1996
Application: Duplex lamination
Type of lamination/coating: SOLVENTLESS
Overhaul/renovation: 2008 web edge guides, potentiometer, Memory CPU from 2020.
Working width (mm): 1210
Materials: Paper from 80 gsm and films from 12my
Speed: max 300 m/min
First unwinder type: Single
Max diameter reel unwinder: 1000
Secondary unwinder type: Single
Max diameter reel unwinder: 1000
Rewinder type: Single
Max diameter reel rewinder: 1000
Coating unit: Solventless
Register controll: no
pumping mixing unit: 2010 year Liquid Control Ltd
Corona treatment: Vetaphone ET3 1995 not working
Coating rollers: 62 sleeves from 390 to 1210, 3 new ones
Note: Web width 1350mm - 2 web guide systems (from 2008 year) - Speed Control (from 2008) •Set of new spare air hoses in the wooden case •Full instruction manuals in English and French •Roll lifting hoists

Maschinencode	LA315
Hersteller	DCM
Modello	LAMINASTAR2
Baujahr	1996
Application	Duplex lamination
Type of lamination/coating	SOLVENTLESS
Overhaul/renovation	2008 web edge guides, potentiometer, Memory CPU from 2020.
Working width (mm)	1210
Materials	Paper from 80 gsm and films from 12my
Speed	max 300 m/min
First unwinder type	Single
Max diameter reel unwinder	1000
Secondary unwinder type	Single
Max diameter reel unwinder	1000
Rewinder type	Single
Max diameter reel rewinder	1000
Coating unit	Solventless
Register controll	no
pumping mixing unit	2010 year Liquid Control Ltd
Corona treatment	Vetaphone ET3 1995 not working
Coating rollers	62 sleeves from 390 to 1210, 3 new ones
Note	Web width 1350mm - 2 web guide systems (from 2008 year) - Speed Control (from 2008) •Set of new spare air hoses in the wooden case •Full instruction manuals in English and French •Roll lifting hoists
