3 schichten MACCHI Blastfolie-extrusionanlage

Maschinencode EX543
Hersteller MACCHI
Baujahr 2002
Anzahl von Schichten 3
Renovierung The triple layer dies, the gravimetric dosing systems, the lineer winders, the electronic control panels, the profile measurement systems, the corona treaters,the web guides, the drives, extruders screws, cooling rings etc are all new and around 10 years old.
Folienstruktur ABC ( Layers distribution A: 30%-25% B: 40%-50% C: 30%-25% )
Material LDPE, LLDPE, BLENDS HDPE, MDPE, mLLDPE . Film thickness min. and max 20 – 200 micron
Folienbreite 1600
Durchsatz (kg/Std.) 350 kg/hr max.capacity, 8.4 tons/day 2.800 tons/year max.capacity
Extruder 1 Schicht ref: A
Schraubendm. 55mm
Beschreibung EXTRUDER PLASTEX 55 / 30 D Screw speed of the extruder 120 rpm Gravimetric dosing system – Doteco Grado with 4 components Hydrolic, plate type screen changer ; AC motor 60 kw
Extruder 2 Schicht ref: B
Schraubendm. 80mm
Beschreibung EXTRUDER PLASTEX 80 / 25 D Screw speed of the extruder 120 rpm Gravimetric dosing system – Doteco Grado with 4 components Hydrolic, plate type screen changer ; AC motor 120 kw
Extruder 3 Schicht ref: C
Schraubendm. 55 mm
Beschreibung EXTRUDER PLASTEX 55 / 30 D Screw speed of the extruder 120 rpm Gravimetric dosing system – Doteco Grado with 4 components Hydrolic, plate type screen changer ; AC motor 60 kw
Kopfbeschreibung Gap 2,2 mm .Cooling control system – K design
Stanzendurchm. (mm) 350mm
Stärkekontrollsystem KUNDIG K 100
Kronenbehandlung FERRARINI BENELLI
Aufroller max. Spulendurchmesser 850mm
Aufroller Beschreibung Winding shafts : 3 inches pneumomechanical winding shaft - 4 PC ; 6 inches pneumomechanical winding shaft - 5 PC
Zusätzliche Informationen Film width min. and max Min = 750 mm / Max = 1600 mm Mechanical speed of the winders from 7 to 150 mt/min Maximum width of film passage on the winders : 1650 mm Electric power 400 Volt 3phase + neutral – 50 hz Installed power 600 KW (approx.) Compressed air pressure 6 bar Operator control touch screen monitor

Andere in der gleichen Kategorie:

203172 - MACCHI COEX 5

MACCHI COEX 5

Kategorie: Film extrusion lines

Unterkategorie: Blown film

Folienbreite: 2100

Baujahr: 2015

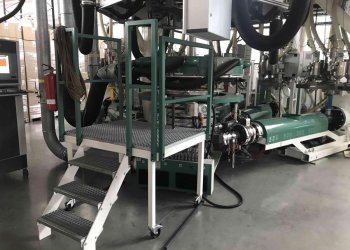

194540 - KUHNE C5 / 2000 MAX TL
