- Maschinencode
- CA185
- Hersteller
- BIELLONI
- Modello
- L6
- Baujahr
- 2000
- Number of layers
- 3
- Film structure
- A-B-C 10/70/20
- Material
- Stretch film LLDPE
- Film width (mm)
- 2000
- Speed (m/min)
- 260m/min
- Output (Kg/h)
- 690 Kg/h netto
- Extruder 1 Layer ref:
- 80/30
- Screw diam 1
- 80
- Extruder 2 Layer ref:
- 160/30
- Screw diam 2
- 160
- Extruder 3 Layer ref:
- 80/30
- Screw diam 3
- 80
- Head description
- T-die and feed block Simplast with manual gauge correction
- Die width (mm)
- 2500

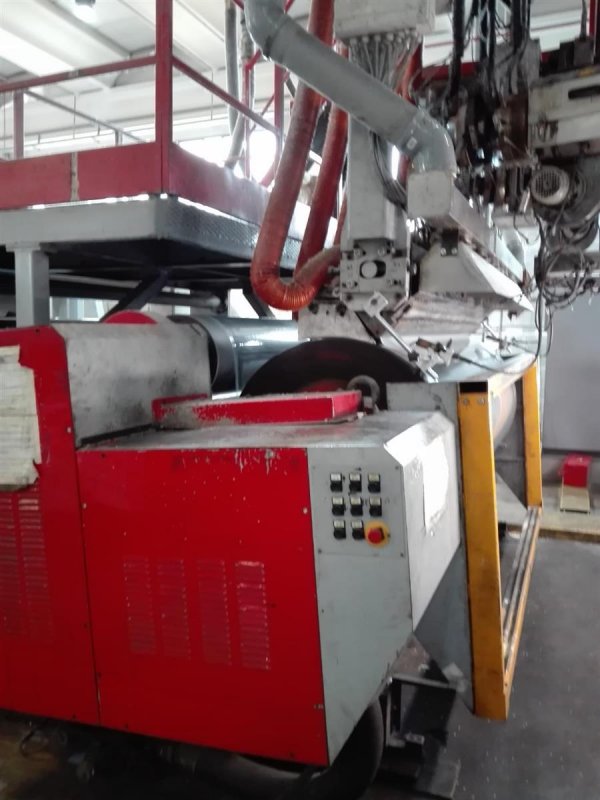

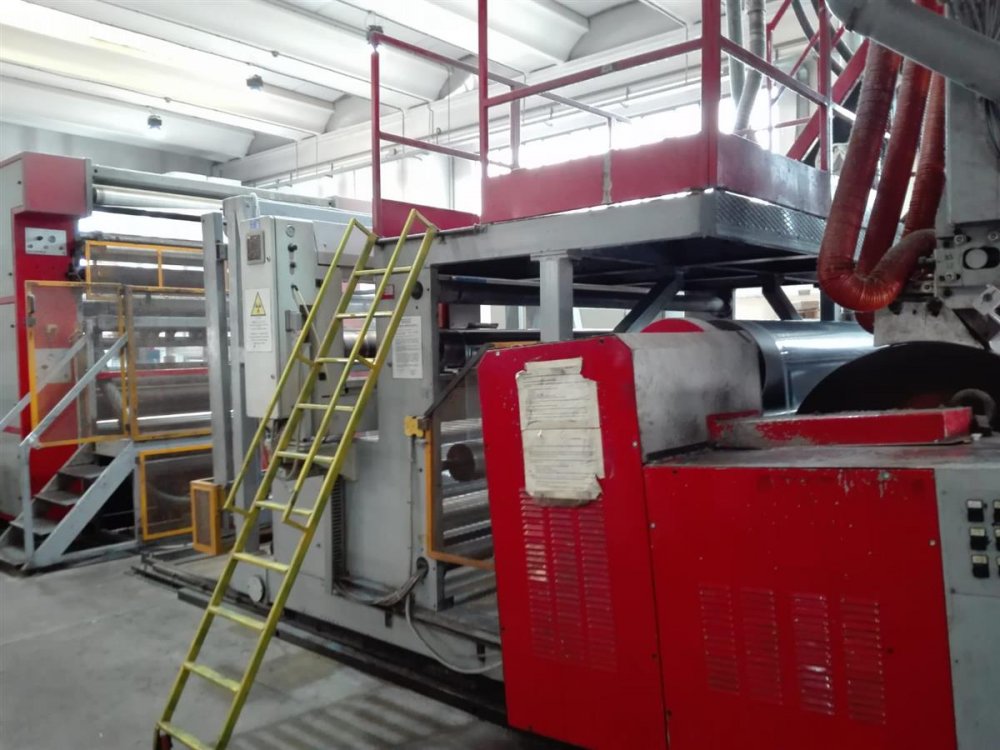

- Chill roll unit
- 1000 + 400mm
- Thickness controll system
- Electronic System Beta rays
- Web guide
- Yes
- Rewinder max reel diameter (mm)
- 800

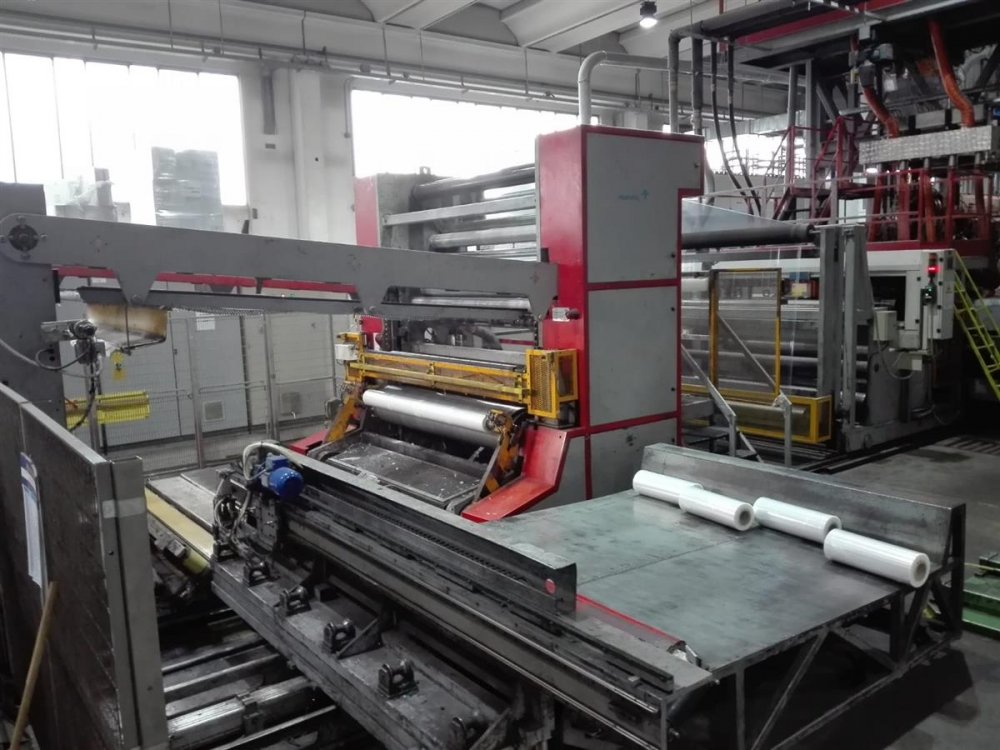

- Rewinder description
- Pheripherical with automatic core glueing and shaft extracting device
- Note
- Layout is available
| Maschinencode | CA185 |
| Hersteller | BIELLONI |
| Modello | L6 |
| Baujahr | 2000 |
| Number of layers | 3 |
| Film structure | A-B-C 10/70/20 |
| Material | Stretch film LLDPE |
| Film width (mm) | 2000 |
| Speed (m/min) | 260m/min |
| Output (Kg/h) | 690 Kg/h netto |
| Extruder 1 Layer ref: | 80/30 |
| Screw diam 1 | 80 |
| Extruder 2 Layer ref: | 160/30 |
| Screw diam 2 | 160 |
| Extruder 3 Layer ref: | 80/30 |
| Screw diam 3 | 80 |
| Head description | T-die and feed block Simplast with manual gauge correction |
| Die width (mm) | 2500 |
| Chill roll unit | 1000 + 400mm |
| Thickness controll system | Electronic System Beta rays |
| Web guide | Yes |
| Rewinder max reel diameter (mm) | 800 |
| Rewinder description | Pheripherical with automatic core glueing and shaft extracting device |
| Note | Layout is available |
