- Codice Macchina
- FL1088
- Manufacturer
- SOMA
- Modello
- MINI
- Year
- 2004
- Numero di colori
- 8
- Print possibilityes
- 8+0
- Rinnovo
- renovated in 2022: retrofited in year 2022 (new upgraded inking systems - as per SOMA latest solution viscosometry control (also the latest one), new doctor chamber system for all the printing decks including modern ink supply system with automatic Cleaning for all the colour decks.
- Gearless
- Yes
- Cambio a maniche rapido
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Larghezza nastro (mm)
- 870
- Larghezza stampa (mm)
- 820
- Min print repeat (mm)
- 250
- Max print repeat (mm)
- 650
- Unwinder type
- Turret Automatic
- Diametro massimo svolgitore (mm)
- 800
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 800
- Essiccazione
- 2 drying zones, 3 mt final tunnel, 2 electric heaters, automatic air recirculation with LEL.
- Videocamera
- BST with defect control,3 chip camera
- Guida film
- Yes
- Vyscosity control
- Yes
- Washing system
- Auto clean

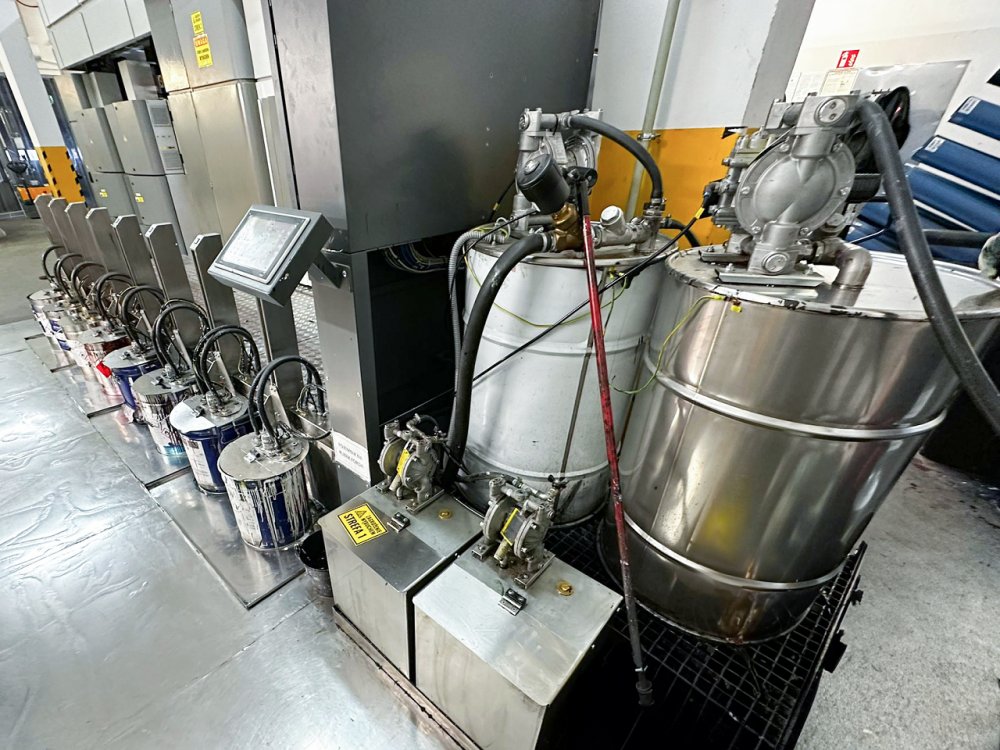

- Sistema d'inchiostro
- Solvent based
- Anilox
- 27 pcs
- Maniche stampa
- 272 pcs
| Codice Macchina | FL1088 |
| Manufacturer | SOMA |
| Modello | MINI |
| Year | 2004 |
| Numero di colori | 8 |
| Print possibilityes | 8+0 |
| Rinnovo | renovated in 2022: retrofited in year 2022 (new upgraded inking systems - as per SOMA latest solution viscosometry control (also the latest one), new doctor chamber system for all the printing decks including modern ink supply system with automatic Cleaning for all the colour decks. |
| Gearless | Yes |
| Cambio a maniche rapido | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Larghezza nastro (mm) | 870 |
| Larghezza stampa (mm) | 820 |
| Min print repeat (mm) | 250 |
| Max print repeat (mm) | 650 |
| Unwinder type | Turret Automatic |
| Diametro massimo svolgitore (mm) | 800 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 800 |
| Essiccazione | 2 drying zones, 3 mt final tunnel, 2 electric heaters, automatic air recirculation with LEL. |
| Videocamera | BST with defect control,3 chip camera |
| Guida film | Yes |
| Vyscosity control | Yes |
| Washing system | Auto clean |
| Sistema d'inchiostro | Solvent based |
| Anilox | 27 pcs |
| Maniche stampa | 272 pcs |
